High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh

High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh

Ampliación de imagen :  High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh

Datos del producto:
Lugar de origen: Provincia de Hebei China
Nombre de la marca: VELP
Certificación: SGS BV ISO
Número de modelo: Las medidas previstas en el presente Reglamento se aplicarán a los productos de acero inoxidable.
Pago y Envío Términos:
Cantidad de orden mínima: 3sqm
Precio: USD4.5-USD5.8/sqm
Detalles de empaquetado: Caja de madera
Tiempo de entrega: 10-15 días
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente: 3000sqm/día

High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh

descripción
Nombre: Malla tejida cable de alta resistencia de la cuerda de alambre del acero inoxidable de la virola del Material: SS304/316
Diámetro de alambre: 1.5 mm/2 mm/2.5 mm Abertura de malla: 25*25 mm/30*30 mm/50*50 mm
Dimensión límite: 1*10m/2*5m/2*3m/10*10m Color: Plata
Solicitud: protección de malla de cuerda/ malla de zoológico/ balaustrada Palabra clave: Flexible
Resaltar:

stainless steel woven wire mesh

,

diamond ferrule cable rope

,

high strength wire rope mesh

High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh





Woven Wire Rope Mesh Product Description

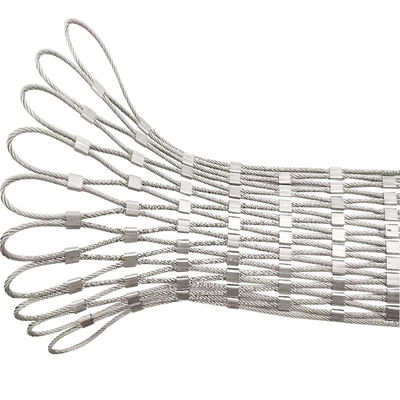

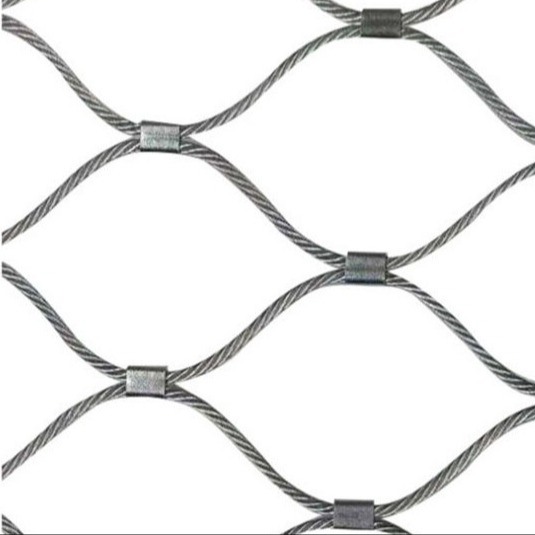

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.



Woven Wire Rope Mesh Parameter



Material stainless steel wire 304 316
Rope diameter 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm 5.0mm
Mesh Opening 25*25mm/30*30mm/50*50mm60*60mm /80*80mm/ 90*90mm/ 120*120mm
Feature Flexibility,high strength,rust resistance,recyclable,maintenance free
Boundary Dimension 1*10m/2*5m/2*3m/10*10m



Woven Wire Rope Mesh Advantages



1. Good toughness,anti climb, shock resistance, not easy to deform,excellent cushioning.
2. Long service time,anti rust,structure strong,no need to maintain.
3. Beautiful, lucency, environment friendly.
4. Easy to install,light weight.
There's two kind installing way,wrapping installing,welding installing.
Usually we use wrapping installing.


Woven Wire Rope Mesh Applications

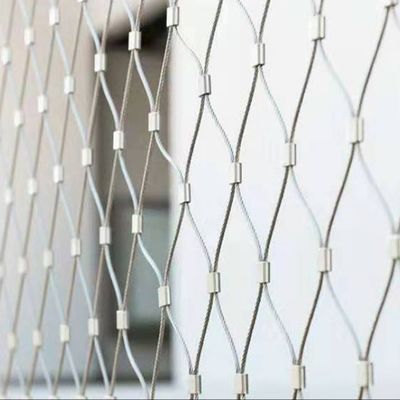

1.Steel Mesh Balustrade - bridge, stair, balcony, path
2.Cable Mesh - Excellent Solution to Safety
3.Safety Net - Structural Measure to Prevent Suicide
4.Helipad Safety Net - Modular Heliport Webbing
5.Cable Zoo Mesh - Solution to Enclosing Most Animals
6.Aviary Netting - Lightweight, Durable and Long Lasting
7.Green Facade - Cable System for Most Climbing Plants



High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh 0High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh 1High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh 2High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh 3
